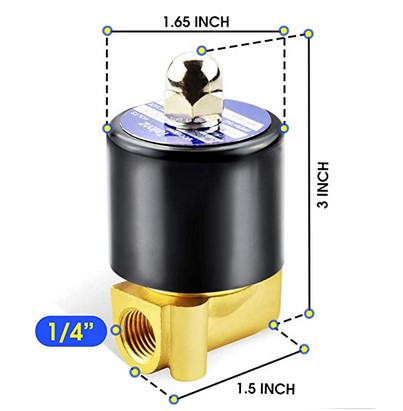

Time to assemble this thing. It should be pretty self explanatory, so long as it is assembled in steps. I don’t think I have yet mentioned, these are supposed to resemble walkway lights when they are done. I will explain that later. Below, starting in the top left and going counterclockwise: the cone that holds the tungsten igniters, the arc generator housing, a piece that slides onto the solenoid valve, a piece that screws into the other side of the solenoid valve using M5 bolts, housing for the controller board, and a purely decorative ring that makes it look more like a walkway light (this isn’t necessary for functionality).
STL’s below:

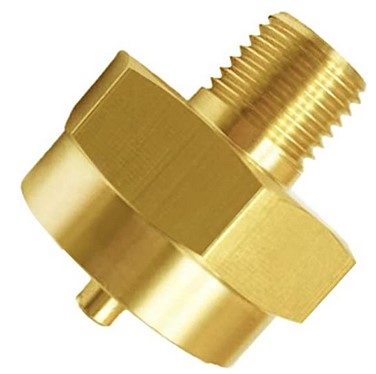

When assembling this, it’s critical to use PTFE tape (not traditional teflon plumber’s tape, as propane can slowly dissolve Teflon). Also, the housing for the orc generator needs to go on the canister before the solenoid valve goes on, otherwise it won’t fit.
Testing to follow…
